Highly versatile particle size and shape analyzers

FlowCam 8000 Series

Through its exceptional image quality and the widest size range available, FlowCam 8000 is a particle size and shape analyzer using state-of-the-art particle imaging technology.

Analyze thousands of particles in less than a minute and comprehensively characterize the size, count, morphology, and identity of subvisible and visible particulates in their native solvent.

Already a FlowCam user? Leave us a review.

Request a Quote

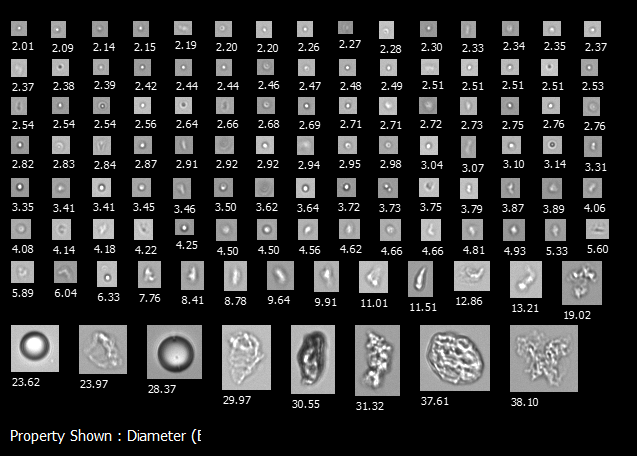

A biopharmaceutical sample imaged on FlowCam 8100 containing silicone oil droplets, protein aggregates, and polysorbate particles
A biopharmaceutical sample imaged on FlowCam 8100 containing silicone oil droplets, protein aggregates, and polysorbate particles

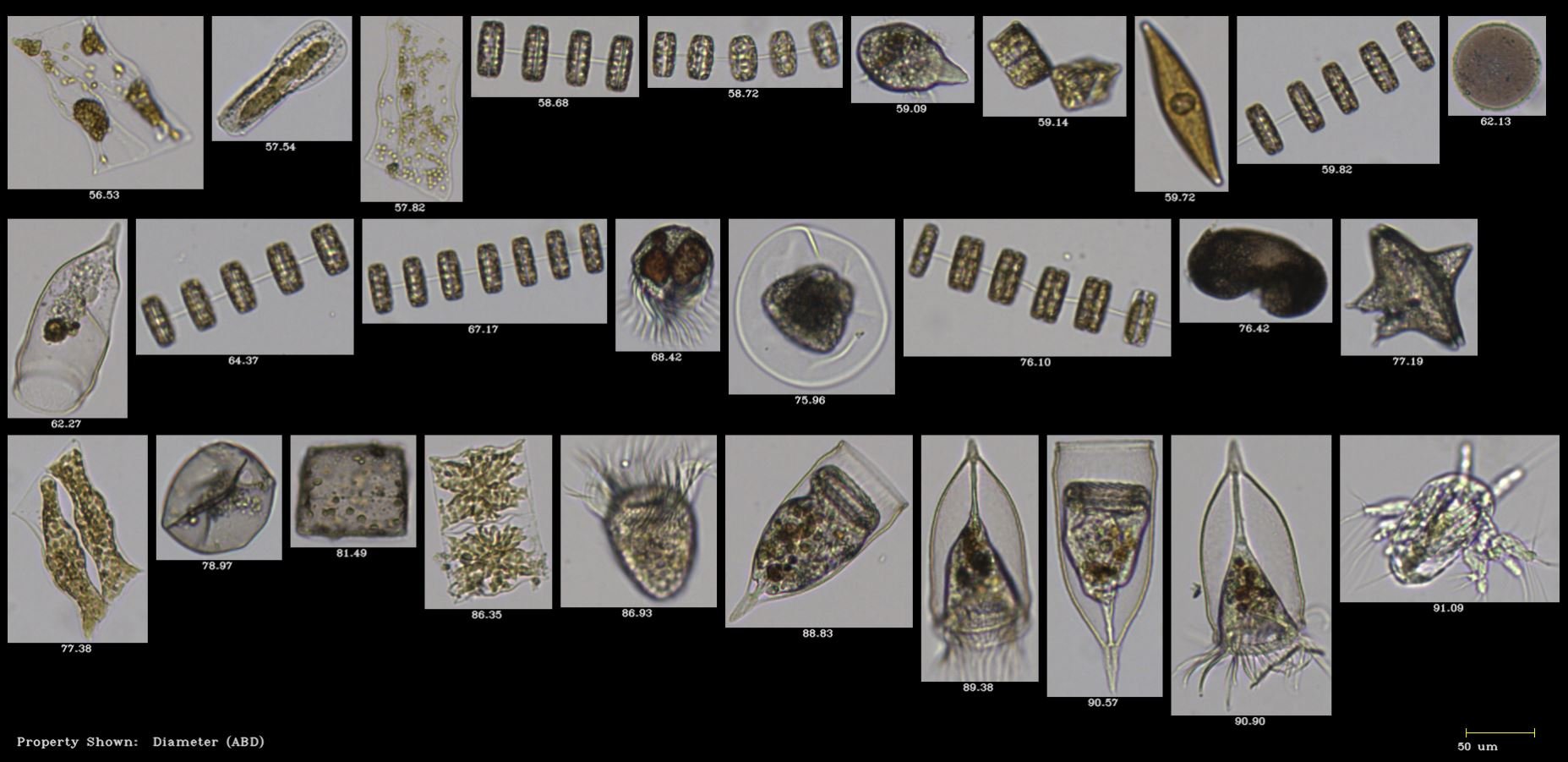

A marine water sample from the Gulf of Maine showing phytoplankton and zooplankton imaged on FlowCam 8400 with a 10X objective
A marine water sample from the Gulf of Maine imaged on FlowCam 8400 with a 10X objective

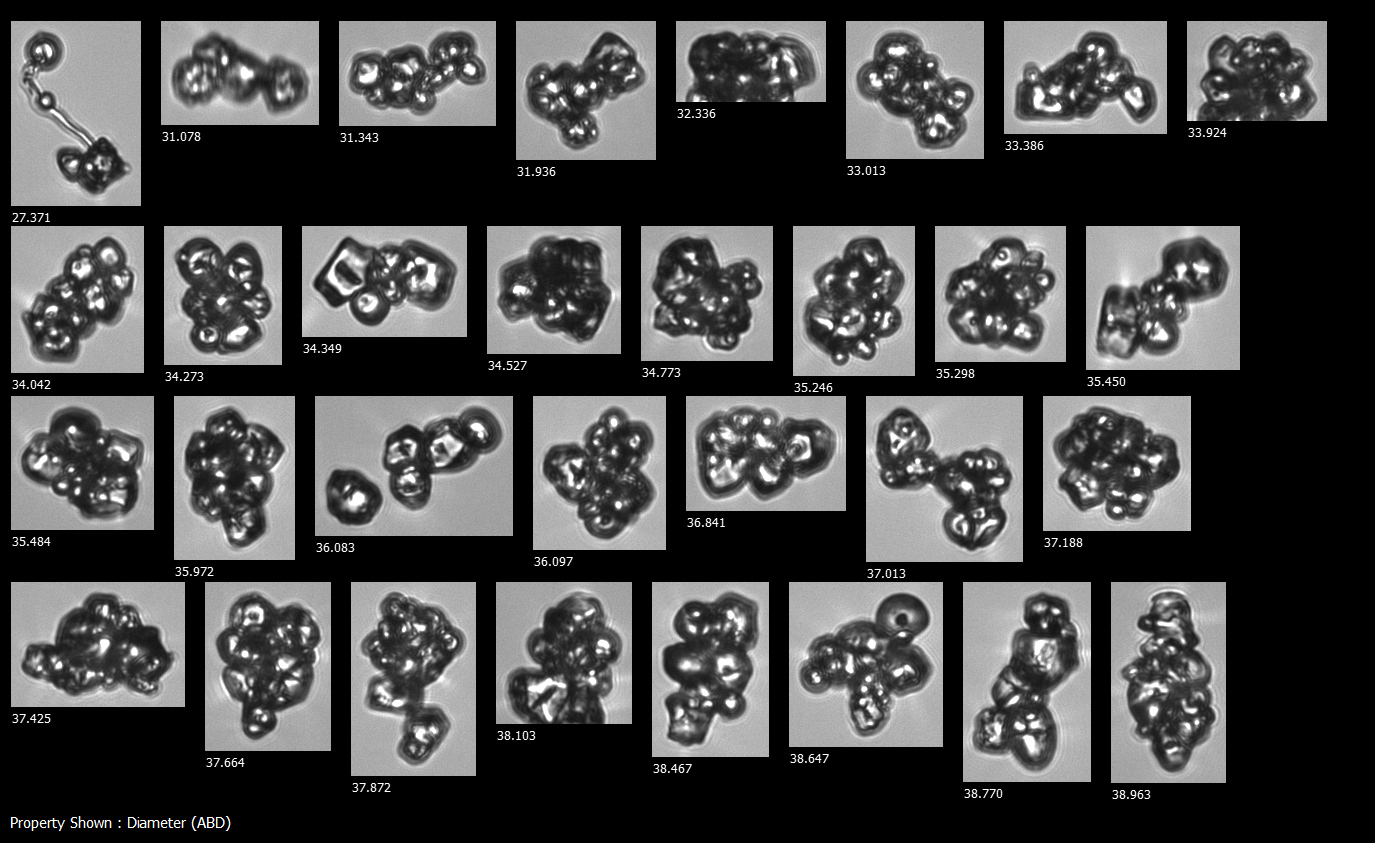

FlowCam collage of corn starch aggregates
Corn starch aggregates imaged on FlowCam 8100 with a 10X objective for food and beverage quality control
FlowCam Application Scientist uses FlowCam 8000 in Analytical Lab
Using FlowCam in our Analytical Lab

Overview

Flow Imaging Microscopy (FIM) combines the benefits of digital imaging, flow cytometry, and microscopy into a single solution.

Beyond traditional particle sizing and counting, image-based analysis allows for the comprehensive characterization of subvisible particles, API aggregates, and contaminants in biopharmaceuticals, mammalian cells, microplankton, emulsions, and advanced materials.

To learn more, download our eBook: The Ultimate Guide to Flow Imaging Microscopy

Benefits

  • Obtain meaningful results in less than a minute, with as little as 100 μL of sample
  • Sort, filter, and classify images based on 40+ morphological parameters
  • Automatically identify particles with out-of-the-box machine learning tools for protein formulations
  • Analyze samples in their native environment, including high-viscosity solvents and buffers
  • Increase productivity with automated liquid handling for up to 384 samples
  • Differentiate aquatic organisms with fluorescence detection in FlowCam 8400

Specifications

  • Particle sizing and imaging 2 µm to 1 mm with magnification options of 20X, 10X, 4X, and 2X
  • Minimum sample volume of 100 µL
  • Sample processing capability from 0.05 mL/minute up to 10 mL/minute, depending on flow cell configuration
  • High-resolution camera available in color or monochrome
  • Maximum particle concentration of 5 million particles/mL at 2.5 µm particle size
  • Compatibility with ALH for FlowCam™ automated liquid handler
  • Fluorescence excitation options (488 nm, 532 nm, 633 nm) with 2-channel fluorescence detection

Helpful Resources

Use FlowCam 8000 Series for

Related Products

Is FlowCam right for you?

  1. Get in Touch

    Tell us about your application and particle characterization needs.

  2. Have a conversation

    We're happy to set up a call to discuss the proper FlowCam configuration for your application.

  3. We'll send you a quote

    We'll follow up to discuss the quote and can set up a seminar, demonstration, or sample analysis.

Request a Quote

Need Supplies?

Find supplies and spare parts for your FlowCam instrument or ask for a quote.

Order Now

Need Help?

Get technical support and application help. Request training or preventative maintenance.


Submit a Support Ticket

Need Information?

Check out our knowledge base including white papers, application notes, technical notes, and videos.

View Resources
